TerraLink-4C Multicam

Four streams from one rack solution

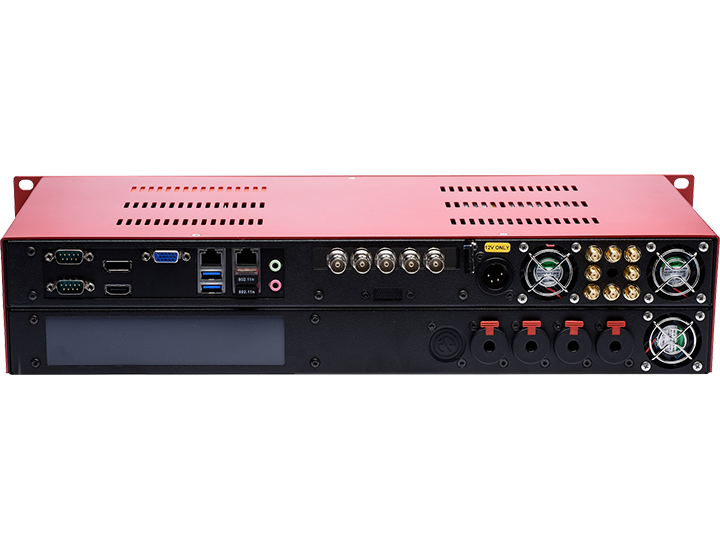

The TerraLink-4C is the first bonded rack transmitter that encodes 4 synced streams at the same time for full remote production. With the TerraLink-4C it is possible to do multi-camera shoots without the need of a OB van on site.

The TerraLink-4C supports both H.265 and H.264 encoding to insure an end to end compliancy using standard based decoders or IRD’s. Besides IFB the TerraLink-4C provides a return data signal to do remotely camera control for white balance and color correction. The TerraLink-4C offers, beside the live option, also a recording feature which records the video on the internal solid state disk. The recordings are transferred using the store and forward mode providing the highest quality possible.

Manage & Control

In combination with the web-based platform the LinkMatrix it is possible to control, manage and administer all your WMT devices and connections. The LinkMatrix is multi-destination and makes it possible to publish the same feed on many platforms including Social Media and private CDN’s.

Decoding

For the Multicam productfleet a special version of a decoder has been developed. It has 4 audio inputs and outputs for intercom to overcome separate de-embedding. This decoder has 4 times HD-SDI outputs with 4 embedded audio channels.

Specifications

INTERFACES

• 2 x Ethernet 10/100/1000 base-t
• SD;SD- SDI
• HD;HD- SDI,HD-HDMI
• XLR-3 IFB/Audio return
• 5 x USB
• Touch screen

INPUTS

• Up to 4 SD; full D1, Pal and NTSC mode
• Up to 4 HD; 720p50, 720p60 and 720p59,94, 1080p30 (10080p50, 1080p60 optional with special card)
• Up to 4 HD; 1080i50, 1080i60 and 1080i59,94

SUPPORTED ENCODING

• H 264 high profile MVP codec
• H.265 main profile MVP codec

AUDIO ENCODING

• AAC 44-256 kHz LFE

CONNECTIONS

• 8 Modems, LTE(4G), fallback 3G
• Wifi
• Ethernet (optional 2)

RECORDING

• 120 GByte internal, up to 1T Byte using optional sleeve
• Simultaneously live streaming and recording in SD and HD
• SD: High quality CBR (Constant Bit Rate) in SD H.264 or H.265 up to 60 Mbit
• HD: High quality CBR (Constant Bit Rate) in H.264 or H.265 up to 60 Mbit

INTERNET ACCES

• WiFi hotspot
• Access via ethernet

IP MANAGEMENT

• 10/100/1000 base-T

HARDWARE

• Dedicated appliance 220 volt
• Weighs +/- 2,5 kg
• 2U 19’ rackmount

OPERATIONS SETTINGS

• Live: Adaptive encoding and bitrate change with three options or with a slider (optional), with configurable delay between 1-60 seconds
• Upload; it sends over recordin and content of an USB stick to a FTP server
• Recording: CBR encoding at 30 Mbit on internal or external SSD disk
• Satellite + 3G/4G+ BGAN: Specific modes to optimize transmission over BGAN and KA satellite. With Satellite +3G/4G we can keep the delay at 1.8 seconds using 3G/4G modems for the return channel and IFB.
• Stand-by/Databonding: In this mode the unit is a true databonding unit for high speed uploads and Internet access. Also in the other modes data connectivity is available but live video gets prioritized.
• PostPro license (optional): In this mode the system records next to a high res CBR a low res proxy file which can used for remote editing and only partial retrieve

AERIALS

• Omnidirectional 0 and 3 dBi
• 11 dB Directional array

INCLUDES

• PSU 90-220 Volt to 12 Volt DC
• WiFi dongle
